Description

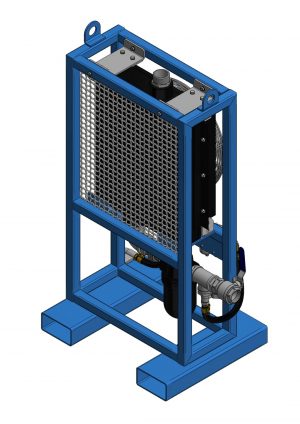

Industrial Minerals Compressed Air After Coolers are available in various sizes and specifications to suit varying market requirements. All units are portable and driven by a compressed air motor meaning they do not require an electrical connection for operation
- Designed and manufactured in accordance with international standards and requirements.
- Industrial air driven motor, no electrical supply required.
- Aluminium Hub Fan with polypropylene blades.
- Brazed bar and plate aluminium core
- 1034kPa (150psi) maximum operating pressure.
- Low maintenance and operating cost.
- Energy Efficient.
- Maximum pressure drop <3psi.
- Available flow rates 250-3000CFM.
- Ergonomic portable site design.
- Operates in sub-zero temperatures.
- Heavy duty compact design and rugged heavy duty construction.
- Eliminates abrasive moisture contamination.
- No equipment or airline freezeups
Common Applications:
- Compressed air preparation for all types of blasting applications.
- Used in conjunction with desiccant or deliquescent dryers for removal of up to 90% moisture.
- In high humidity environments for maximum blasting productivity and reduce abrasive wastage.
| Inlet Temp °F (°C) | 150(66) | 200(93) | 250(121) | 300(149) | 350(177) |
| Model | Max Flow Capacity (SCFM) @ 15°F (8°C) | ||||
| ACC-250 | 281 | 246 | 230 | 186 | 163 |
| ACC-400 | 488 | 428 | 400 | 324 | 284 |
| ACC-750 | 885 | 776 | 725 | 587 | 515 |
| AC-950 | 1159 | 1017 | 950 | 770 | 675 |
